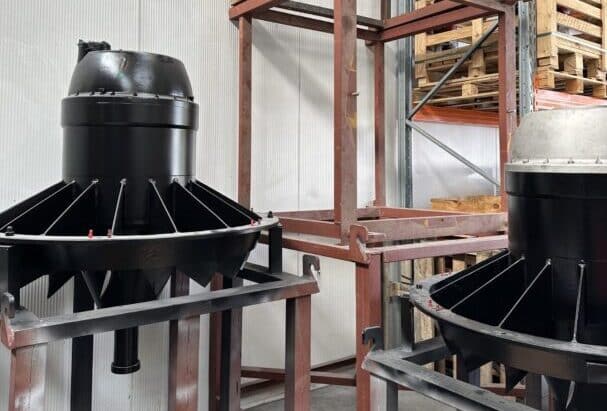

T800 hydroelectric turbine
Models from 6 to 55 kW
Kaplan bulb type with fixed hydraulic settings
Rated power 6 to 55 kW depending on height and flow rate
Nominal flow rate from 250 l/s to 1400 l/s
Nominal head from 1,2 to 8,0 m
Integrated high-efficiency three-phase permanent magnet generator 400 V 50 Hz (60 Hz on request)
Specificities
Ultra-compact, it can be integrated into existing or retrofit environments with great installation flexibility.
Submerged, it is invisible and silent
Sturdy and long-lasting
Standardized, it is cost-effective for your low-waste projects
Decarbonized by nature, it meets today’s climate challenges
Dimensions
Head and flow define the power available for each project:
feffe
- A study enable to identify the head and turbinable flow.
- Blade and guide settings are customized to suit these characteristics
- Generators are sized according to power and rotation speed
- Turbine housing in corrosion-resistant steel and stainless steel
- Marine bronze propeller blades
- Sealed resin-coated stator and rotor
- Concrete and polyester extensions available
- Horizontal
- Vertically
- Inclined
Always associated with its fiber-reinforced concrete cone (supplied with the turbine) ; above a certain flow rate, a cone extension is required (optional)
To prevent air ingress, the suction cone must be completely submerged under at least 20 cm of water downstream.
A suitable screen and valve must be installed upstream of the turbine.
The turbine must be placed in a water chamber of sufficient volume, with a minimum height of water above it to avoid vortex phenomena.
Several turbines with different power ratings can be installed in parallel to optimize seasonal flow variations
The turbine directly generates 400 V 3-phase / 50 Hz alternating current (60 Hz optional) to grid standards for the site characteristics (net head and flow rate) for which it has been designed.
The energy can be used directly on islanding electrical equipment (outside the distribution network).
For connection to the grid (self-consumption or resale), we offer a regulation and coupling cabinet.
Three-phase power generation requires a balanced, three-phase installation.
Connection to the grid requires authorizations and/or contracts with the distributor, in accordance with current national regulations and standards.
Full support and financing for your project
Feasibility/potential study
Administrative procedures
Specifications / Financing
Deployment
Support and maintenance
